Aluminium Ceiling Panel Full Recyclability Fitting Numerous Scenarios
Our aluminum ceiling panels cover residential, commercial, public transit and semi-outdoor scenarios, solving the disadvantage points of mildew, deformation and short service life of gypsum, PVC and fiber ceilings.
Main Advantages
1. Fire Resistance and Moisture Resistance: Ensures safety and durability in wet environments.
2. Sound-Absorbing and Mould-Proof: Reduces noise and prevents mold growth.
3. Water Resistance: Keeps ceilings dry and damage-free in humid conditions.
4. Antibacterial and Antistatic: Maintains cleanliness and prevents static buildup.
5. Easy Installation: Quick and straightforward setup process.
Key attributes
| Product Name |
Aluminum Ceiling panel |
| Brand Name |
Guilinmen |
| Usage |
Interior Architectural Ceilings |
| Surface treatment |
PVDF painting/power painting/heat transfer/anodizing |
| Color |
RAL Color, Wood-grain, Customized Colors |
| Core Structure |
Hexagonal Aluminum Honeycomb Core |
| Materials |
Panel:Aluminum 3003H24, 5052AH14/ honeycomb core: Aluminum 3003 |
| Thickness |
7mm – 50mm and Customized |
| Size |
Common size:1220mm×2440mm, Customized size |
| Warranty |
More than 10 years |
| Production capacity |
100000 Square Meters/month |
| After-sale Service |
Technical support for installation |
| Characters of Honeycomb Aluminum |
|
| Parameter |
Specification |
| Aluminum Alloy |
AA3003 H18, AA5052 H18 |
| Total Panel Thickness |
4mm,8mm,10mm,15mm,25mm,Max 500mm |
| Aluminum Skin Thickness |
0.5mm,0.8mm,1mm,1.5mm,Max 3mm |
| Coating |
Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc |
| Length |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width |
1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm |

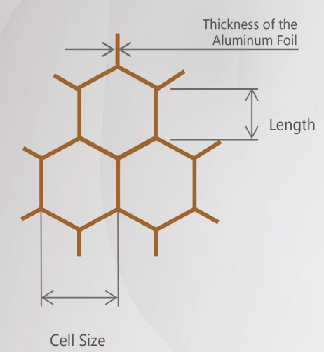

| Honeycomb Core Foil Thickness |
0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm |
| Honeycomb Core Cell Size |
licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m) |
| Honeycomb Core Cell Length |
Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm |
| Edge |
Close Edge, Open Edge |

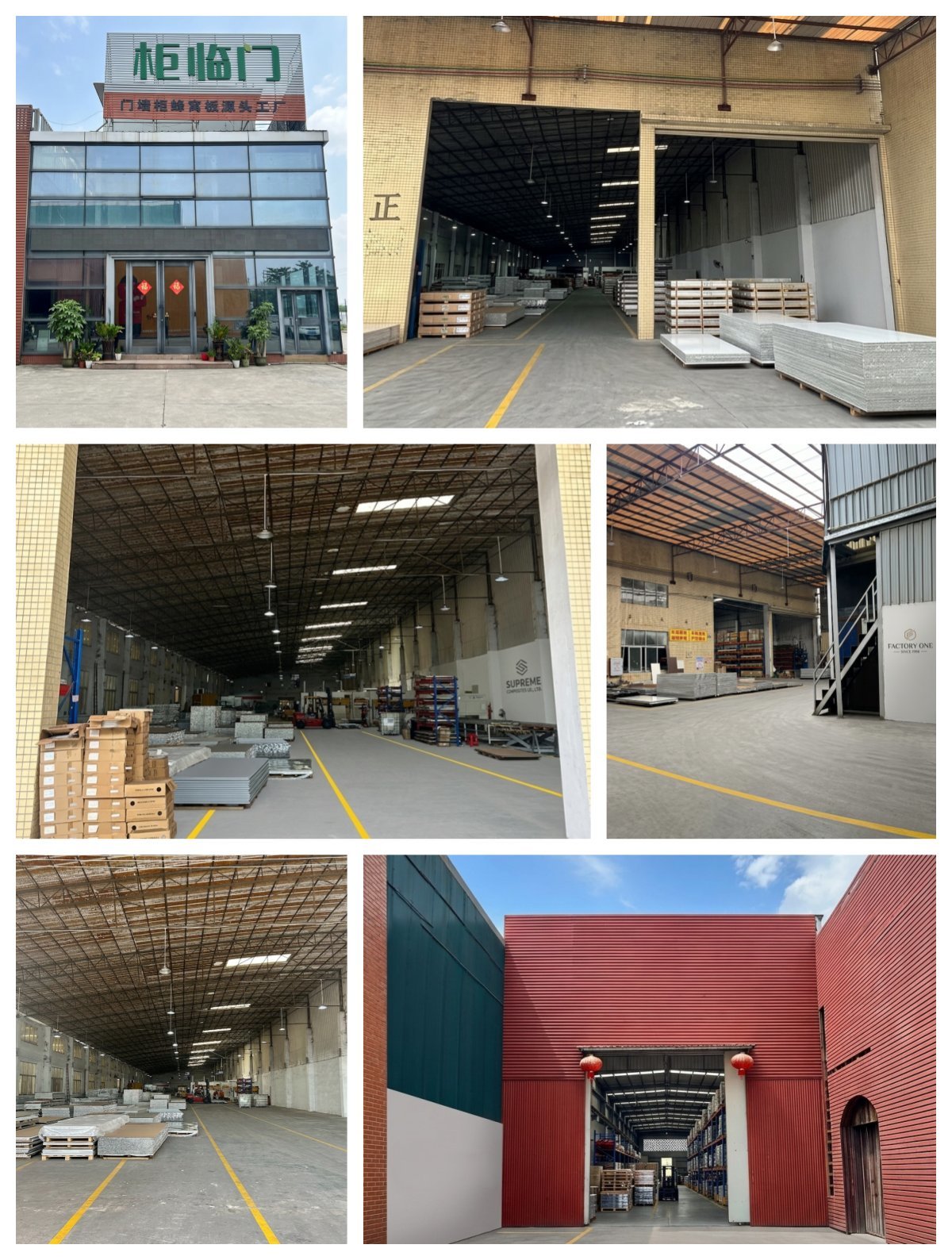

Overview of Our Factory
FAQ
1. What are the main advantages of Aluminum Ceiling Panels?
Aluminum Ceiling Panels are lightweight, durable, moisture-resistant and corrosion-resistant, making them suitable for residential, commercial and public buildings. They also offer a wide range of surface finishes and designs, providing both functional and decorative value.
2. Are Aluminum Ceiling Panels suitable for humid and coastal environments?
Yes. With suitable aluminum materials and surface treatments, Aluminum Ceiling Panels are well suited for tropical, humid and coastal environments. They are resistant to moisture and corrosion and are easy to clean and maintain, making them particularly suitable for Southeast Asian and coastal projects.
3. Do you provide fire-rated and acoustic Aluminum Ceiling Panels?
Yes. We can provide different solutions according to project requirements, including fire-performance Aluminum Ceiling Panels and perforated acoustic ceiling panels with acoustic backing. Relevant test reports and technical documentation can be provided for applicable products.
4. Can you customize the size, color, design and perforation pattern?
Yes. We provide OEM & ODM services, including customized panel sizes, thicknesses, shapes, RAL colors, wood-grain finishes, metallic finishes, perforation patterns and perforation rates. We can also customize complete ceiling systems and accessories according to project requirements.
5. Do you provide a complete Aluminum Ceiling System and international shipping?
Yes. In addition to ceiling panels, we can provide compatible carriers, suspension systems, clips and accessories to create a complete ceiling solution. We also provide export-standard packaging and container-loading solutions to help protect panels during long-distance transportation and optimize shipping costs.
